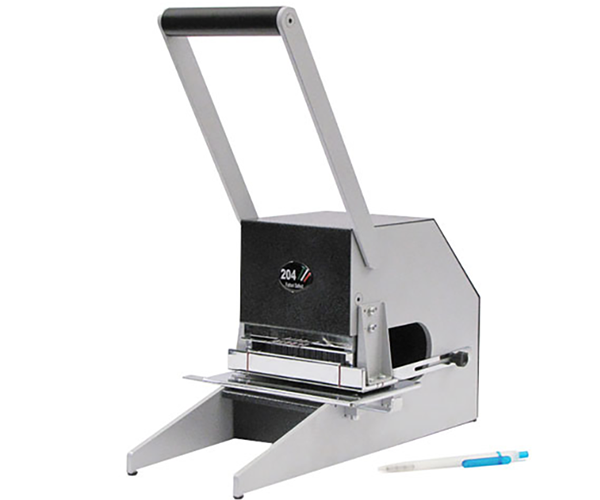

Perforating machine – Interchangeable text
Perforating machine for texts on an interchangeable matrix plate. Each plate may contain either two different one-line texts or one four-line text; max length 100 mm.
The machine is equipped with a hands-on paper support plate fitted with adjustable guides to easily position the documents.
Specify if the paper sheet has to be punched on top or bottom. The number of sheets to be perforated in one run depends on paper substance and type style.
- Perforating capacity : sheets. 25
- Feed depth : mm. 110 *
- Machine dimensions LxWxH : cm. 18 x 40 x 42
- Weight : kg. 12
* Feed depth may be increased to 230 mm by removing the adjustable depth guide.
- Safety key.
- Additional plates.
- Style no. 7 : mm. 7 – points 4 x 5 – needle ø mm. 0,9
- Style no. 72 : mm. 9 – points 4 x 5 – needle ø mm. 0,9
