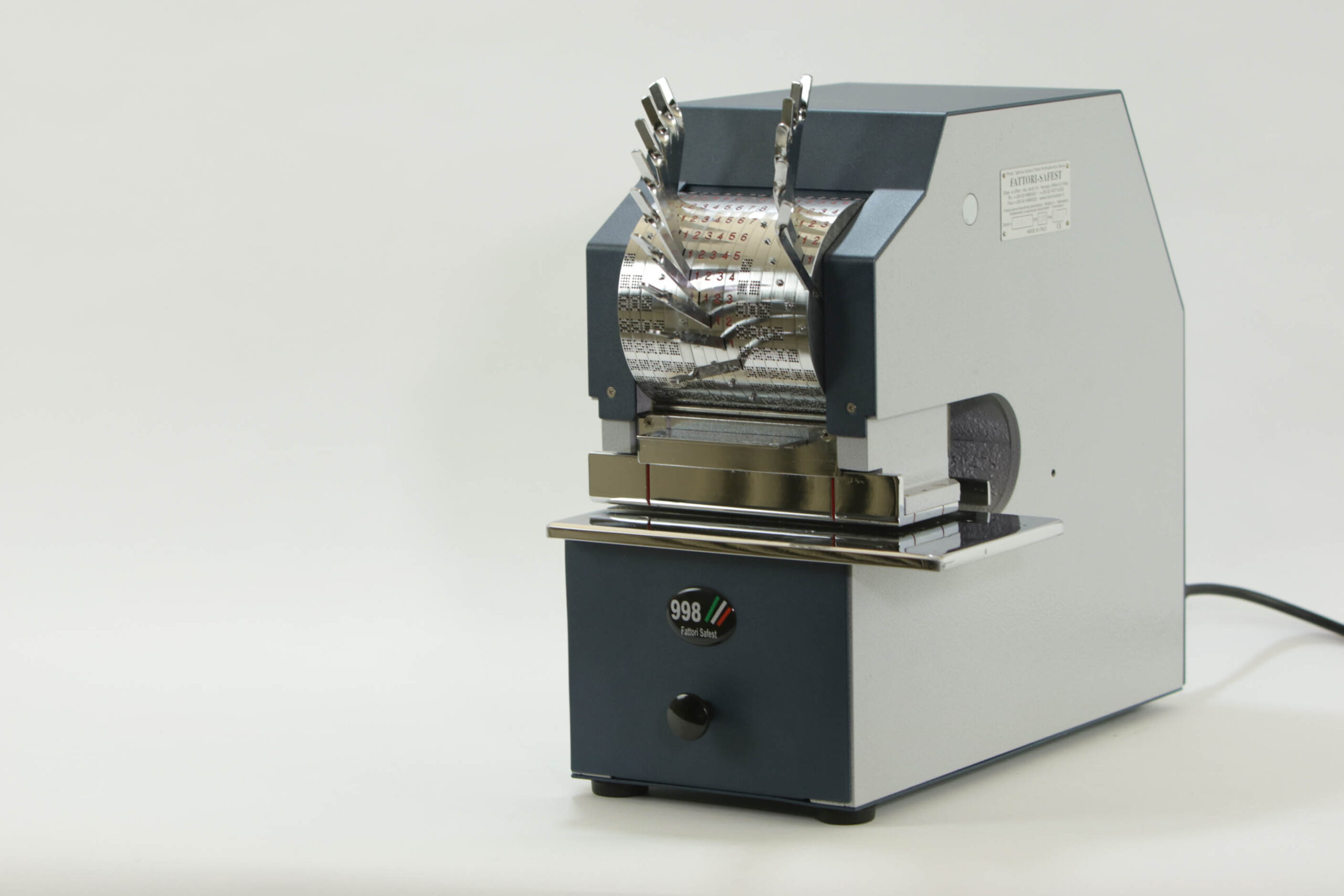

Electric perforating machine for date and texts
Professional Perforating Machine for Dates and texts, including interchangeable texts, previously perforated on plates or composed by means of removable plates; perforating capacity up to 30 paper sheets in one run; max perforating capacity depends on type style, paper substance and number of characters.
The standard version comes with 6 selector rollers plus 2 points; may be extended to 15 rollers; type height may be 7mm or 8.5mm.
The characters are set by means of a removable pin to be fitted from time to time to the rollers; on request, external fixed levers may be used. The machine is started by a push-button, but a microswitch or pedals may be fitted upon request. A fixed text may be fitted above or below the date, max length 110mm. Specify if the paper sheet has to be punched on top or bottom. The machines are fitted with paper support plate and adjustable guides to thoroughly align perforation.
- Perforating capacity : sheets. 30
- Max line length : mm. 110
- Feed depth : mm. 110 *
- Machine dimensions LxWxH : cm. 24 x 36 x 34
- Weight : kg. 42
- Power : V. 220 Hz. 50
* Feed depth may be increased to 210mm by removing the adjustable depth guide.
- Pedals or microswitch.
- Lock with safety key.
- We reserve the right to make changes
