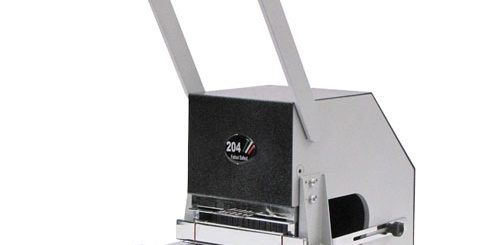

Perforating machine for digits and letters

Perforating Machine for digits and letters, and a combination of the two. The 6 characters of the standard version are fitted to interchangeable metal plates which can be easily fed through the front side; the plates come as digit or letter kit.

The machine is equipped with a hands-on paper support plate fitted with adjustable guides to easily position the documents. Specify if the paper sheet has to be punched on top or bottom. The number of sheets to be perforated in one run depends on paper substance and type style.

  • Perforating capacity : sheets. 25
  • Text length : mm. 42
  • Feed depth : mm. 110 *
  • Plates : 6 – 16
  • Machine dimensions LxWxH : cm. 18 x 40 x 42
  • Weight : kg. 12

* Feed depth may be increased to 230 mm by removing the adjustable depth guide.

  • Safety key.
  • 8-16 characters version.
  • Style no. 7 : mm. 7 – points 4 x 5 – needle ø mm. 0,9
  • Style no. 72 : mm. 9 – points 4 x 5 – needle ø mm. 0,9
